Activate NDD Print Client Canon Logs
The NDD Client Canon logs are used to analyze the functioning of the component.
The logs must be activated remotely using the ECT (Embedded Configuration Tool).
If you haven't already installed it, proceed with the ECT installation.
Step 1: Prepare the device
On the device panel, type 159 357 258 and click on the button
On the screen that opens, click on Mode List > Copier > Options > DSPLY-SW

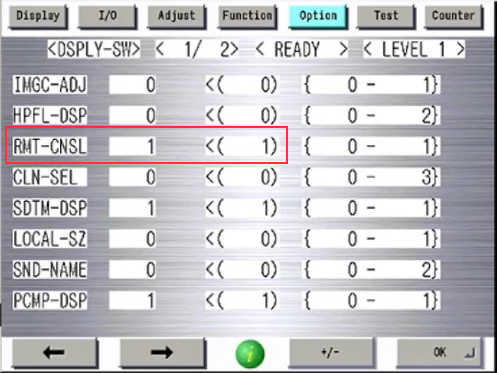

Click on RMT-CNSL and change the value to 1 and click OK
To return to the start screen, click on the Reset button.
Step 2: Activate Logging
Open ECT
Select the manufacturer Canon
Under NDD Print Client, activate the Full Logging option
Click on Send to Printers
Step 3: Receive the logs
Download the tool Log Console.zip
Extract the contents and open the console.bat file in Notepad
Enter the IP address of the device

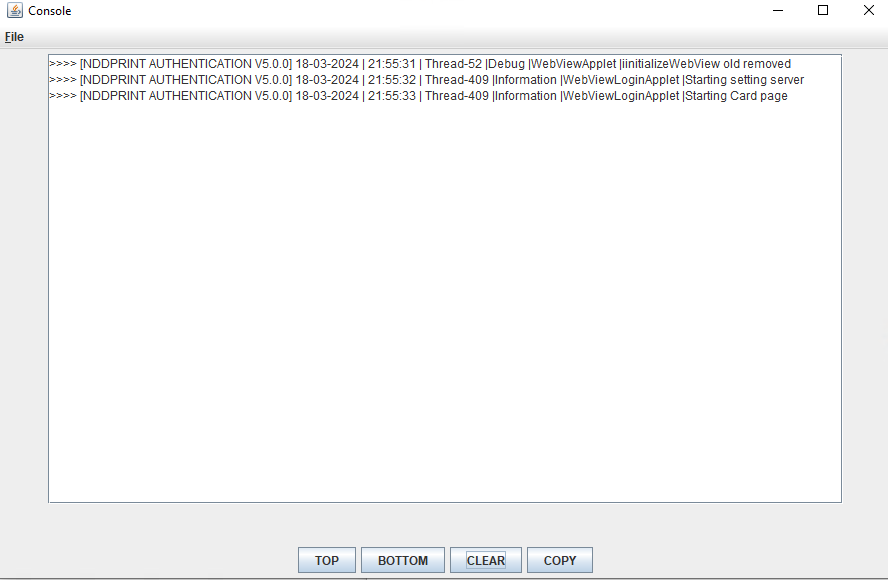

Log example
Logs will be deactivated if the device is restarted
All NDD Print Client logs are marked with the information [NDD PRINT AUTHENTICATION VX.XX].
