Get to know the NDD Print MF Brother

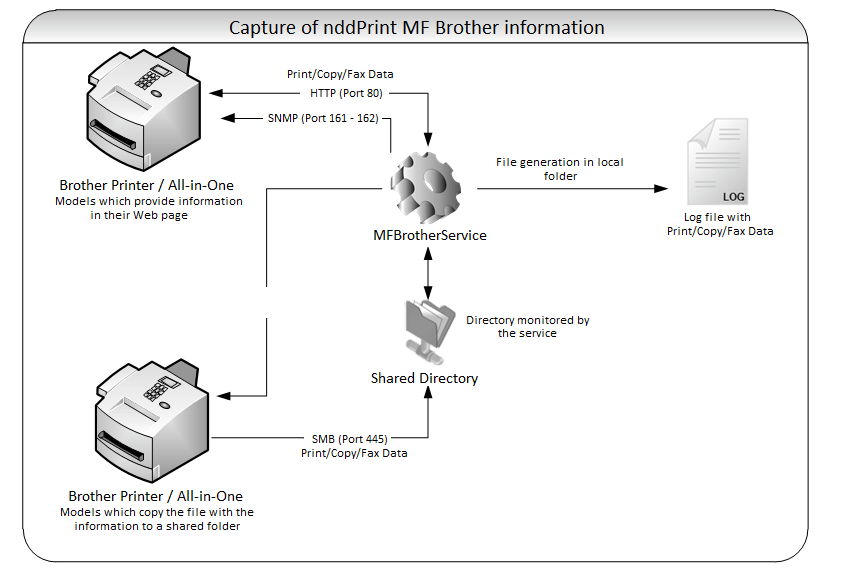

The accounting of the NDD Print MF Brother can occur in two ways, according to the printers model:

• In some models, the product will search for the job register straight from the printer's web page (HTTP - Port 80);

• In the other models, the product will configure each printer that was added in the interface to send a file with the job registers to a shared folder in the computer (SMB - Port 445).

When adding the printer to the interface, thought the SNMP Protocol, the product will perform the settings required for the operation of the accounting.

You will find below an explanation of the operation flow.

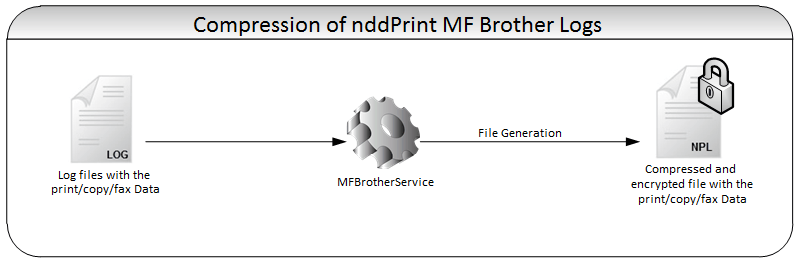

After the generation of the file .log, it is compacted, encrypted and transformed in NPL:

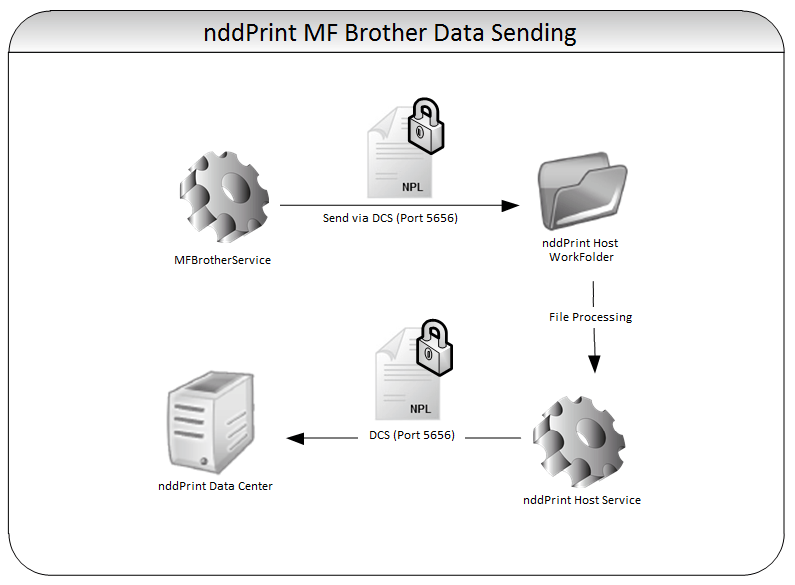

The NPL is then sent to the NDD Print Host, which will process the files and send them to the NDD Print Data center.
